Getting started for ecommerce

Diller API:   

We will introduce the below API’s for calling and updating coupons, adding new members, and updating transactions on members. The documentation below is only pinpointing main functionality. Please see full documentation and example responses here: https://api.prerelease.dillerapp.com/swagger/index.html

 DillerAPI v2 uses OpenId/Oauth2.0 to authenticate clients.

Each "Customer/Shop" should be configured with Client Id and a client secret for authentication, it's also beneficial to have a parameter for department Id, so we can identify where all members/transactions originate.

Diller suggest that you create a small UI to configure the integration, to make it easier to set it up.

 (First do : POST {{RootURL}}/connect/token

API’s to call for configuration/setup of plugin:

GET /api/v2.0/stores

Get the information about the store. Save Id into config file for future usage

GET /api/v2.0/stores/{storeId}/departments

Get a list of departments for the store, select one and save Id for future use

GET /api/v2.0/stores/{storeId}/segments

Get a list of all segments and valid values for the store. (to be used on my member page)

Optional: Get all coupons for diller (if needed to be stored inside ecommerce)

GET /api/v2.0/stores/{storeId}/coupons

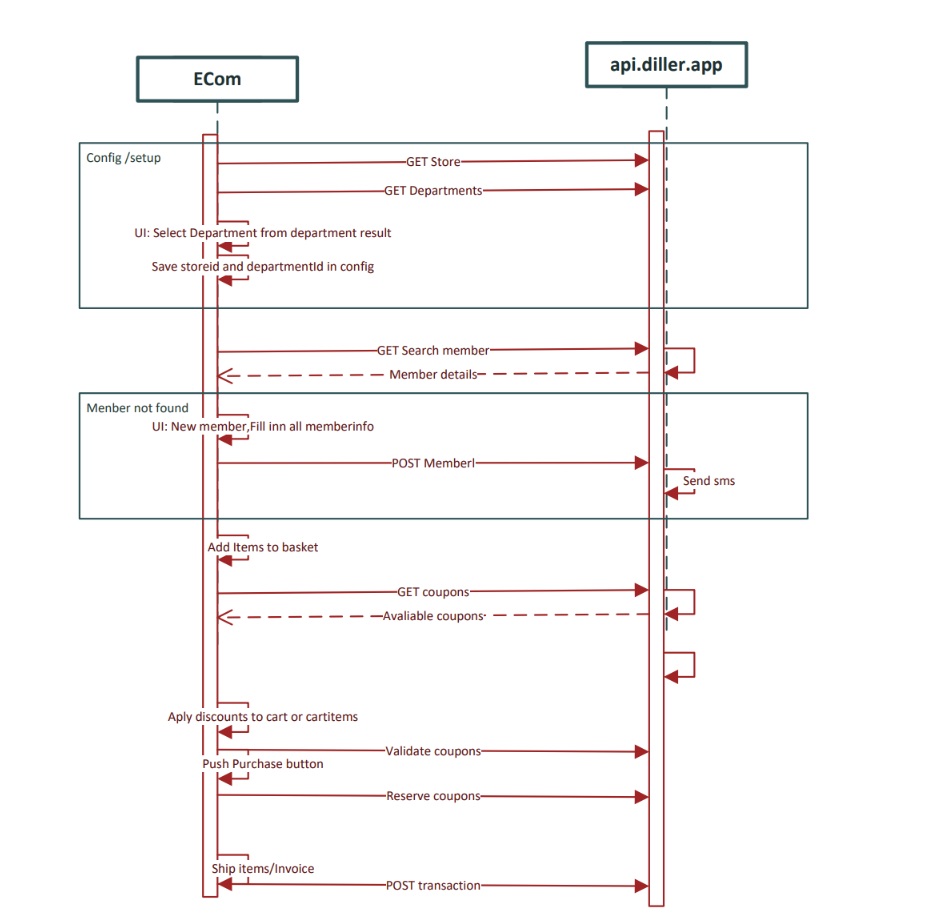

API Usage workflow:

1. When creating a user in ecommerce do a GET /api/v2.0/stores/{storeId}/members/search

1. If member not found, add it to Diller

1. POST /api/v2.0/stores/{storeId}/members

2. Purchase process, when relevant step to use coupons do a GET /api/v2.0/stores/{storeId}/members/{memberId}/coupons/ to get the coupons available for this member

3. Just before the checkout “button do a validate call  for each coupon used /api/v2.0/stores/{storeId}/members/{memberId}/coupons/{couponId}/validate to check for is its still valid for the member.

4. After purchase, reserve the coupons in Diller with the reservce POST /api/v2.0/stores/{storeId}/members/{memberId}/coupons/{couponCode}/reserve

5. When the order is shipped/payed - Add purchase information to Diller (including usage of coupons)

1. POST /api/v2.0/stores/{storeId}/members/{memberId}/transactions

6. If purchase is returned - cancel it in Diller, if partial returned, cancel the send in remainder as a new transaction

1. POST /api/v2.0/stores/{storeId}/transactions/{transactionId}/cancel

Test URL: https://api.prerelease.dillerapp.com/

ClientId: XXX

ClientSecret: XXX

UI needed:

We need a “register member page” where we register new members.

Name address, email, phone ++ (member object) and segments (create UI dynamically from the API call

GET /api/v2.0/stores/{storeId}/segments

NB : Important to get the two consents at the bottom

We also need an edit page for this info.

Add to my page if possible 😊

Here you can also add some membership details, points memberlevel etc.

In the purchase process we require the customer to be logged in, so that we can get coupons available

Then at the appropriate moment in the purchase process call GET Coupons to get any coupons/discounts to be used.

Continue to the purchase screen. Then just before “buy now” button do a validate of the coupons.

So that you know they are still valid.

To send the transaction to diller, we normally do that when you collect payment on the order

Then we give points and deduct coupons in diller.

Also if a guest purchase is happening, not logged in to ecommerce, then add the two consent checkboxes to the purchase page. (so that the customer can join the loyalty program)

If GDPR is checked the add to diller and also store into ecommerce
